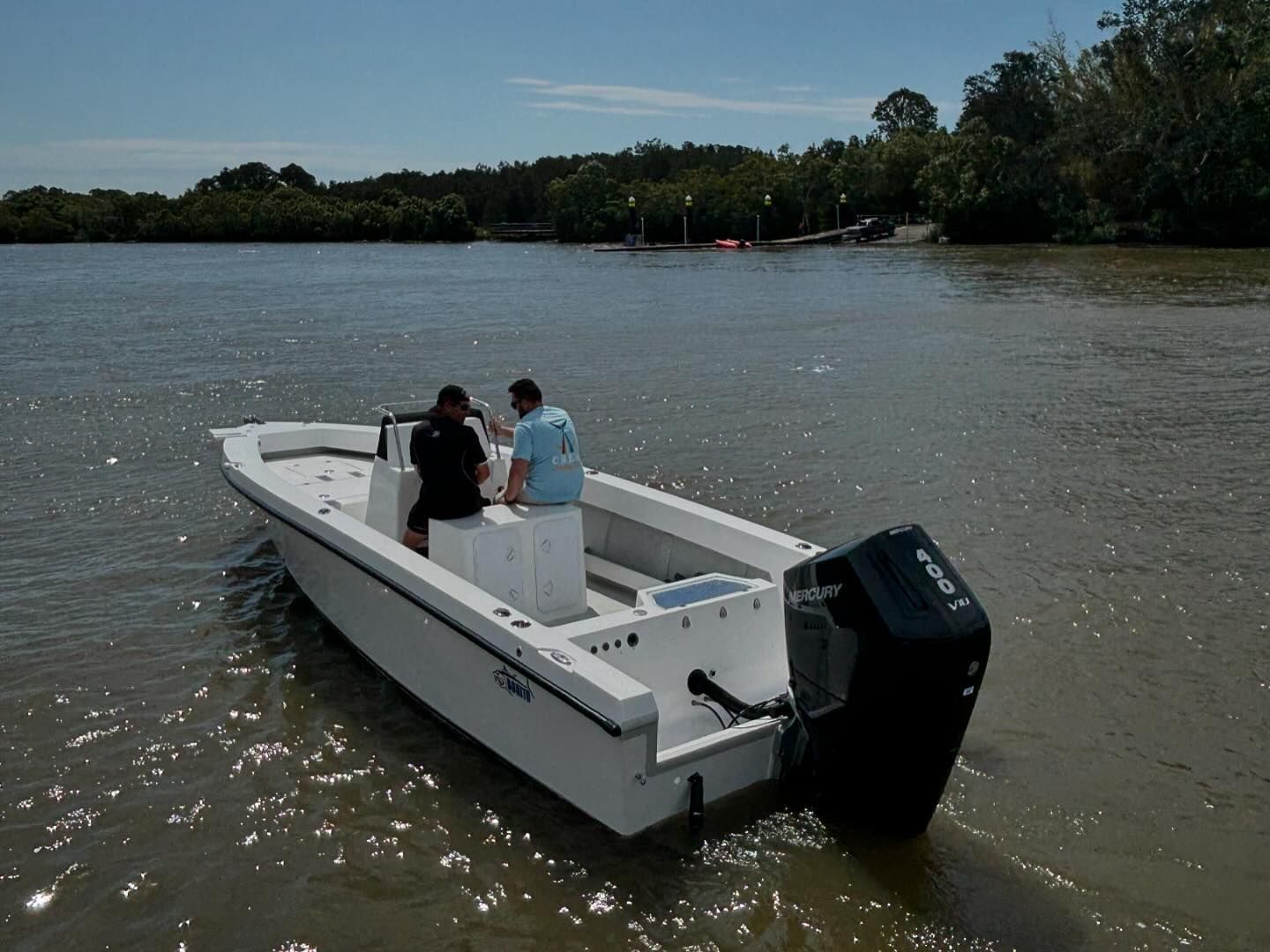

Bonito 900 Centre Console-NEW MODEL FOR 2025
The Bonito 900 Centre Console the newest model to hit the water in 2025 for Bonito Boats. The 900 CC is the pinnacle of Australian Built Sport Fishing Centre Consoles. The Bonito 900 Hull has an amazing offshore racing heritage which gives this hull the ability to travel offshore in comfort at high cruise speeds with its soft dry ride, enabling you to travel to your favourite remote fishing spot in record time. The Bonito 900 CC like all Bonitos is constructed with a Fibreglass structual stringer system, composite floors and transom, and foam filling of voids under the floor. The Bonito 900 is also customisable to your fishing and boating needs.
Update on the Bonito 900CC: (full walkthrough coming soon!!)
https://youtu.be/ks_XpajWG0g?si=ZF8naxNcyiHmt48B
900 Hull Specs:
9m Hull length
1600KG Hull weight+options
2.48m Beam
24 degree deadrise
500-700L+ Fuel Tank Capacity
600 Hp Rated

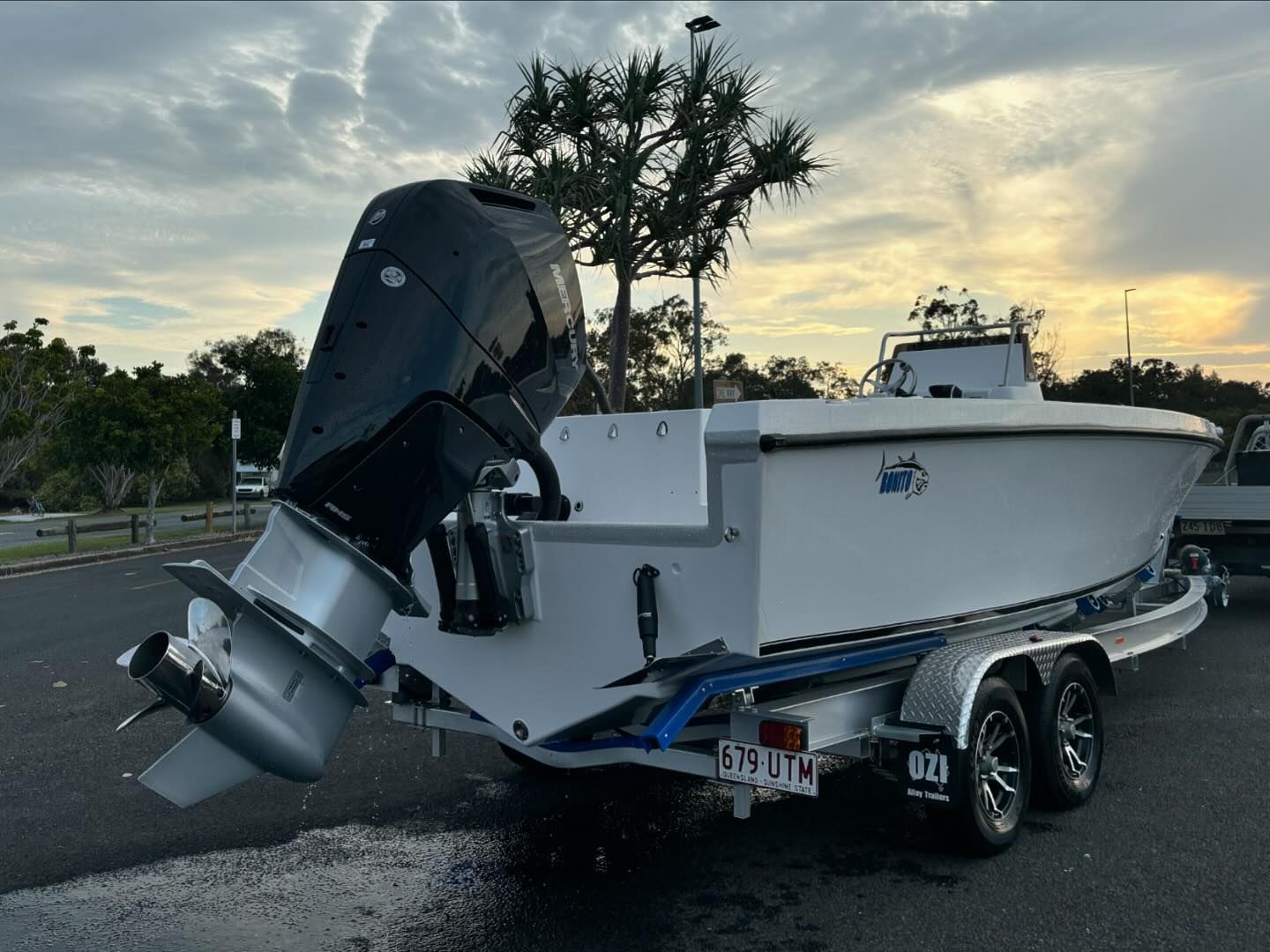

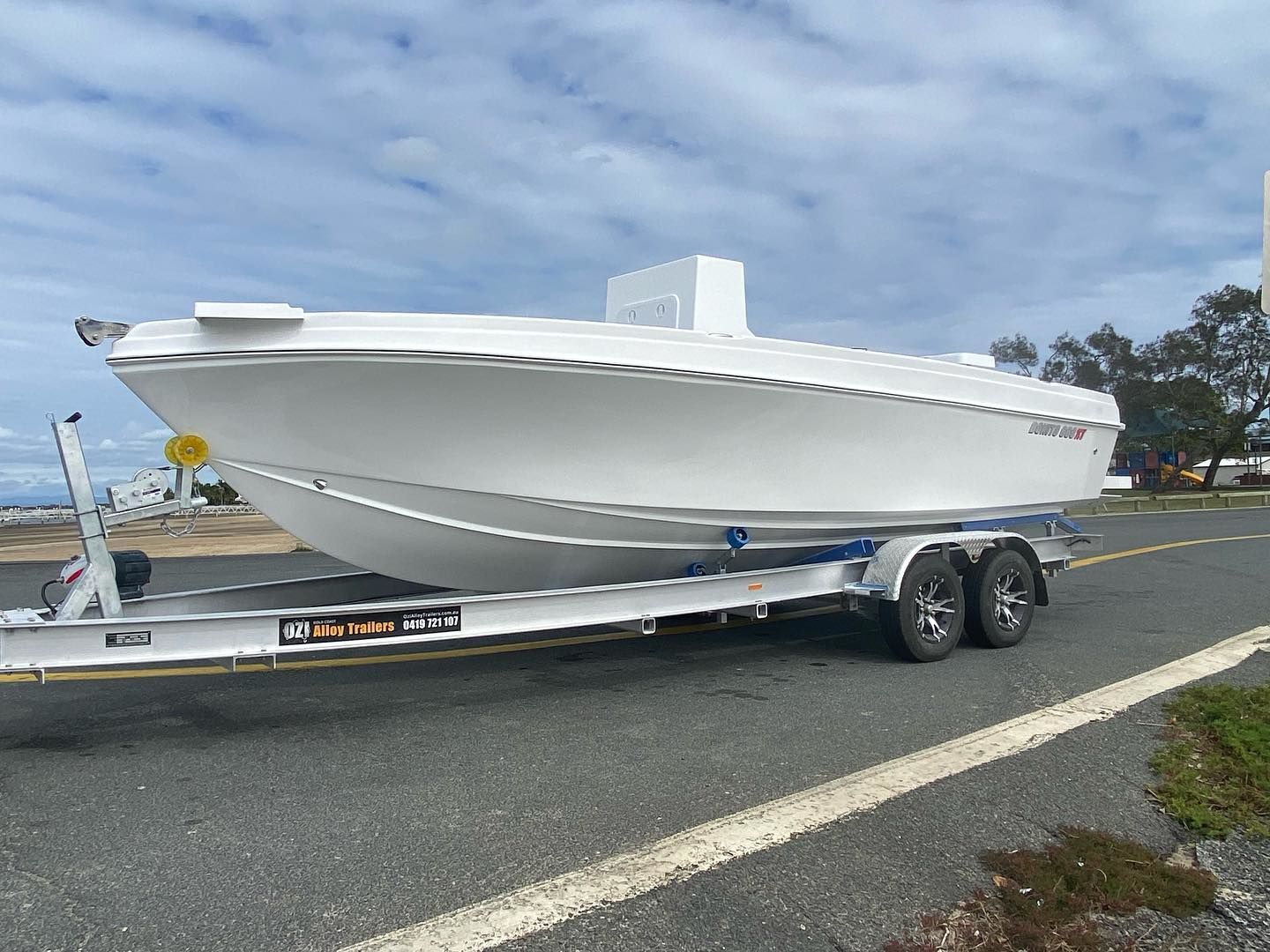

Bonito 760 Big Ram and Centre Console
In 2024 the Bonito Boats launched the is the 760 (25ft) Centre Console. The 760 CC is the ultimate in Australian Sports Fishing centre console. The 760 hull has an amazing racing heritage, which gives this hull the ability to travel a lot of Km at a high speed which is awesome for those long distance trips to the reef. The Bonito 760 has a walkthrough transom, large live bait tanks, ultra long range fuel tanks 600+ Litres 400+ Hp Rated and will be trailerable with a boat motor trailer package weight under 3.5 tones
Check out the 760 in action:
Full Walkthrough of Hull 1:
https://www.youtube.com/watch?v=ry6Fv_ZKllA&t=630s
In action in Moreton Bay:
https://www.youtube.com/watch?v=LgB9OcEW69s
First Water Test:
https://www.youtube.com/watch?v=VIYXAKhNb3o&t=28s
760 Hull Specs:
7.6m Hull length
1250KG Hull weight+options
2.48m Beam
24 degree deadrise
400+ Hp Rated (400Hp V10 Mercury going on hull No.1)

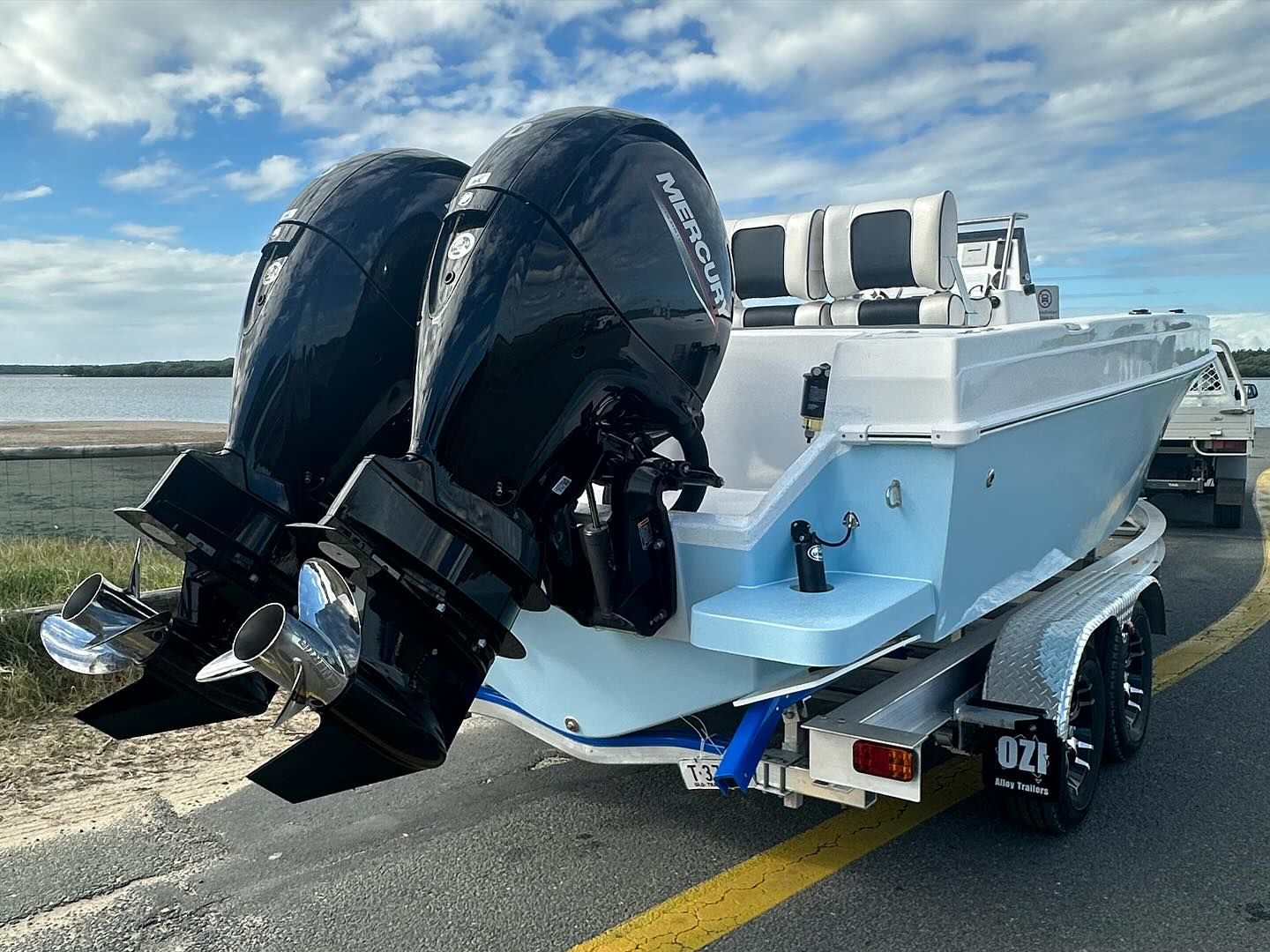

Bonito 660

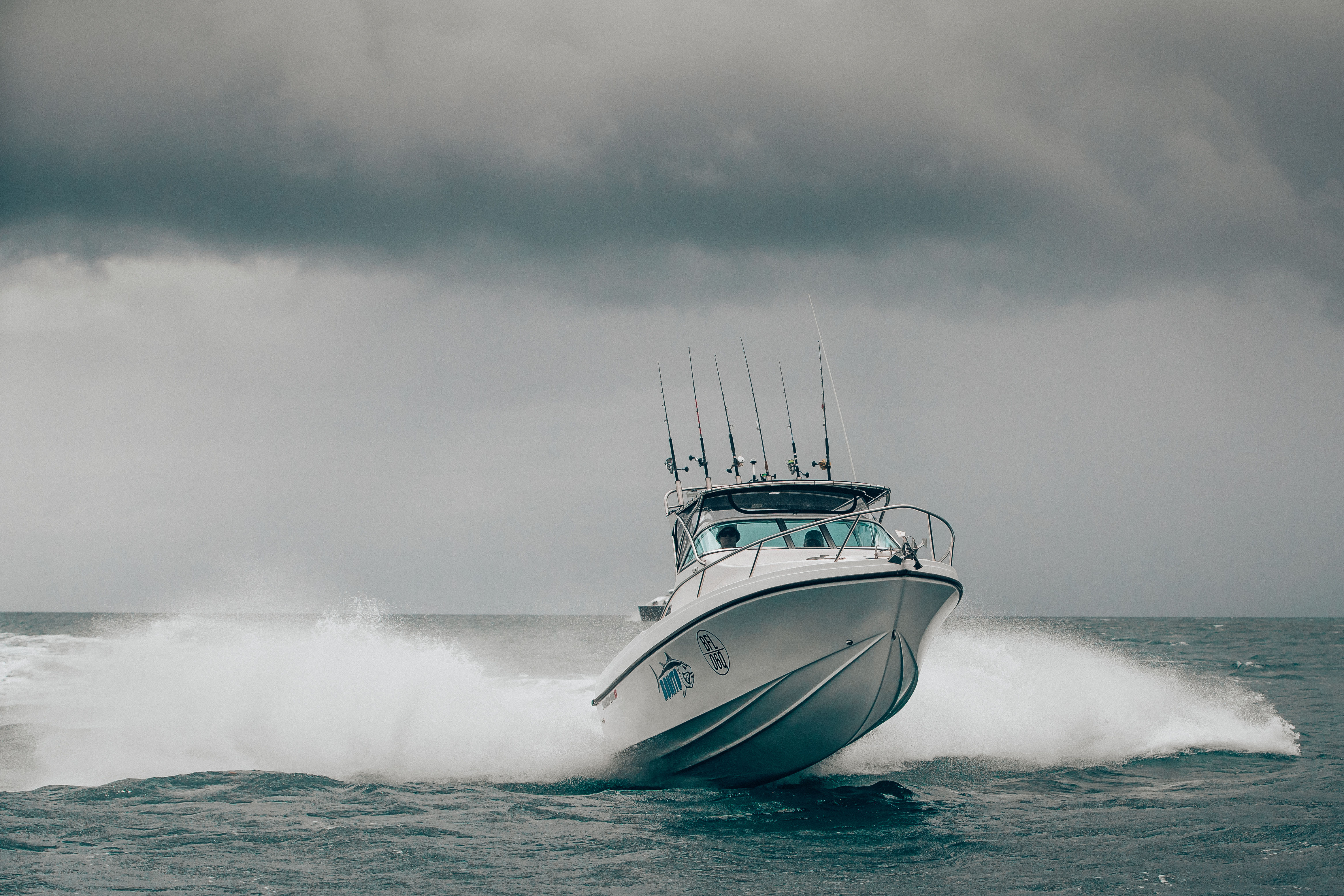

The Bonito 660 comes from a long line of incredible high performance offshore racing and fishing boats. The 660 is one of the softest riding offshore fishing machines available. The 660 has a deadrise of 53 degrees at the bow and 25 degrees at the transom. Same as the 500 & 560 the 660 is customisable to you and how you fish. With fuel tank capacities ranging from 360L to upwards of 550L+, through hull transducers, underfloor fresh water tanks, side pockets, bait tanks, bait boards, targa and t -tops etc.
The 660 Big Ram is the first half cabin available from Bonito and has a fantastic fishing cockpit to fish 4 people and amazing cabin which is 2.4m long which makes overnighters easy. The Big Ram is avaiable with both a clear windscreen and fibreglass wavebreaker.
The 660 Centre Console has all the great features of the smaller Bonito models such as recessed bait tanks, recessed cleats, recessed bow roller and anchor well and large console with the ability to flush mount twin 16 inch screens all of which making for a seamless boating experience.
The Bonito 660 is also available with the XT Performance Pack. The XT Performace Pack upgrades the HP rating from 300HP to 400HP. The XT performance pack allows for higher top and cruise speeds. to increase the HP rating we strategically laminate additional strucutal fibreglass on the base of the hull below the waterline, in the transom in the hull sides and in the stringers system.
Bonito 660 Hull Specifications:
6.6m Hull Length
2.45m Beam
53-25 degree deadrise at the transom
360-500+ L Fuel Tank Capacity
1150kg+ options Hull weight
Deep 0.7m Internal Free Board
300 Hp Rated
400+ Hp Rated XT Hulls
Make sure to check out the Bonito Boats Youtube channel for vidoes on the 660 BigRam and the 660 Centre Console
All New Bonito 660XT & 560XT In Action - Extra Tough Offshore Fishing Machines - YouTube
First look at the Bonito Boats 660 Centre Console - YouTube
Bonito Boat’s new 660XT deep-vee machine - YouTube
Bonito 660 Big Ram Review
2022 Bonito 660XT Big Ram review - boatsales.com.au
22.5 Degree Deadrise at transom
190L to 380L fuel tank capacity
900Kg Hull Weight+ options
225Hp Rated
Deep 0.7m Internal Freeboard
300Hp Rated XT Hulls
Make sure to check out the 620 CC in more detail on the Bonito Boats Youtube Channel :
Bonito Boats Australia:620 Centre Console Full Walkthrough - YouTube
Bonito Boats Australia 620CC In Action In Moreton Bay - YouTube
Bonito Boats Australia- Fitting the Wave Breaker to the New Bonito 620 Express (youtube.com)
Bonito 620 Centre Console
The Bonito 620 is the perfect upgrade for fisherman that want to step into a larger more serious offshore fishing machine. The Bonito 620 Is available in both centre console and express with Wave Breaker. The express is the perfect boat for fisherman who want a sports fishing boat with the added protection and comfort of a cabin.
The 620 like all of our models is fully customisable to you and how you fish, with options such as; large and small cast platforms, through hull transducers, electric motor mounts, internal side pockets, under gunwale rod storage, leaning posts, live bait tanks, unfloor water fresh water tanks,190L to 380L underfloor fuel tanks etc.
The Bonito 620 is constructed incredibly tough, with the laminate consisting of woven rovings, double bias knitted cloths, fibreglass stringer system, full composite construction and Foam Filled underfloor compartments, making it an extremely safe boating experience.
Bonito 620 Hull Specs:
6.2m Hull length
2.4m Beam
22.5 Degree Deadrise at transom
190L to 380L fuel tank capacity
900Kg Hull Weight+ options
225Hp Rated
Deep 0.7m Internal Freeboard
300Hp Rated XT Hulls
Make sure to check out the 620 CC in more detail on the Bonito Boats Youtube Channel :
Bonito Boats Australia:620 Centre Console Full Walkthrough - YouTube
Bonito Boats Australia 620CC In Action In Moreton Bay - YouTube
Bonito Boats Australia- Fitting the Wave Breaker to the New Bonito 620 Express (youtube.com)
Bonito 580 Centre Console - NEW RELEASE LATE 2025/EARLY 2026
The Bonito 580 CC is the newest model to the Bonito range and will be hitting the water for the first time shortly!
The Bonito 580 Hull is based off our larger 620CC, so you know the performance of this hull is going to be fantastic. The 580CC fits right in between our very popular 560 & 620 models. Whether you are downsizing from a larger boat or wanting to step into your first offshore boat this is the boat for you. The 580 like all of our models is fully customisable to you and how you fish, with options such as; large and small cast platforms, through hull transducers, electric motor mounts, internal side pockets, under gunwale rod storage, leaning posts, live bait tanks, unfloor water fresh water tanks,190L to 300L+ underfloor fuel tanks etc.
The Bonito 580 is constructed incredibly tough, with the laminate consisting of woven rovings, double bias knitted cloths, fibreglass stringer system, full composite construction and Foam Filled underfloor compartments, making it an extremely safe boating experience.
Make sure to check out the walkthrough video of the 580:
https://youtu.be/9BRorVewGdU?si=L32WBdpULdsFT1y0
Bonito 580 Hull Specifications:
5.8m Hull Length
2.4 metres Beam
22.5 degree Deadrise
200Hp Rated
Draft 0.35m
190L & 300L+ Fuel Tanks
Internal Free Board 640mm (minimum)
800kg Hull Weight + Options

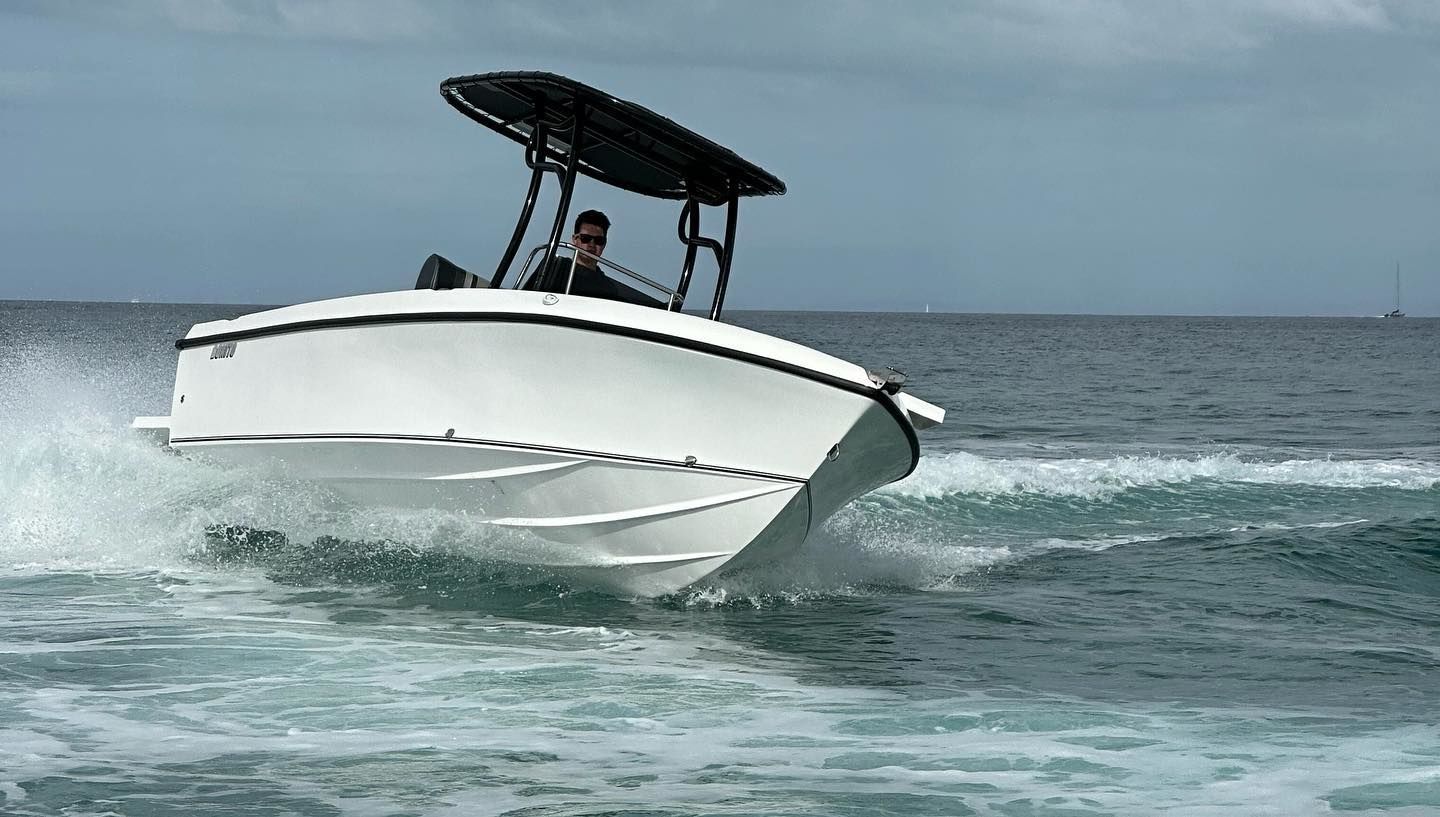

Bonito 560 Centre Console & Tiller
The Bonito 560 also comes in the same configurations as the Bontio 500, centre console, side console, and tiller steer. Slightly larger than the 500, the 560 has a shallow draft enabling navigation of small creeks like the 500 chasing crabs and prawns, but with its additonal waterline length is a more at home in the bay and offshore chasing pelagics. The Bonito 560 is fully customisable to you and how you fish, with options such as; large and small cast platforms, through hull transducers, electric motor mounts, internal side pockets, under gunwale rod storage, leaning posts, live bait tanks, unfloor water fresh water tanks 150L to 300L underfloor fuel tanks etc. The Bonito 560 is also able to transform from a sports fishing machine into a family boat with the addition of a T - top, split and folding rear lounge and front console seat. The Bonito 560 is constructed incredibly tough, with the laminate consisting of woven rovings, double bias knitted cloths, fibreglass stringer system, full composite construction and foam filled underfloor compartments, making it an extremely safe boating experience.
The Bonito 560 is available with the XT performance pack. The XT performace pack upgrades the power from 150HP to 200HP. The additional power is an absolute thrill to experience and allows for considerably higher top speeds and cruise speeds with amazing fuel economy.

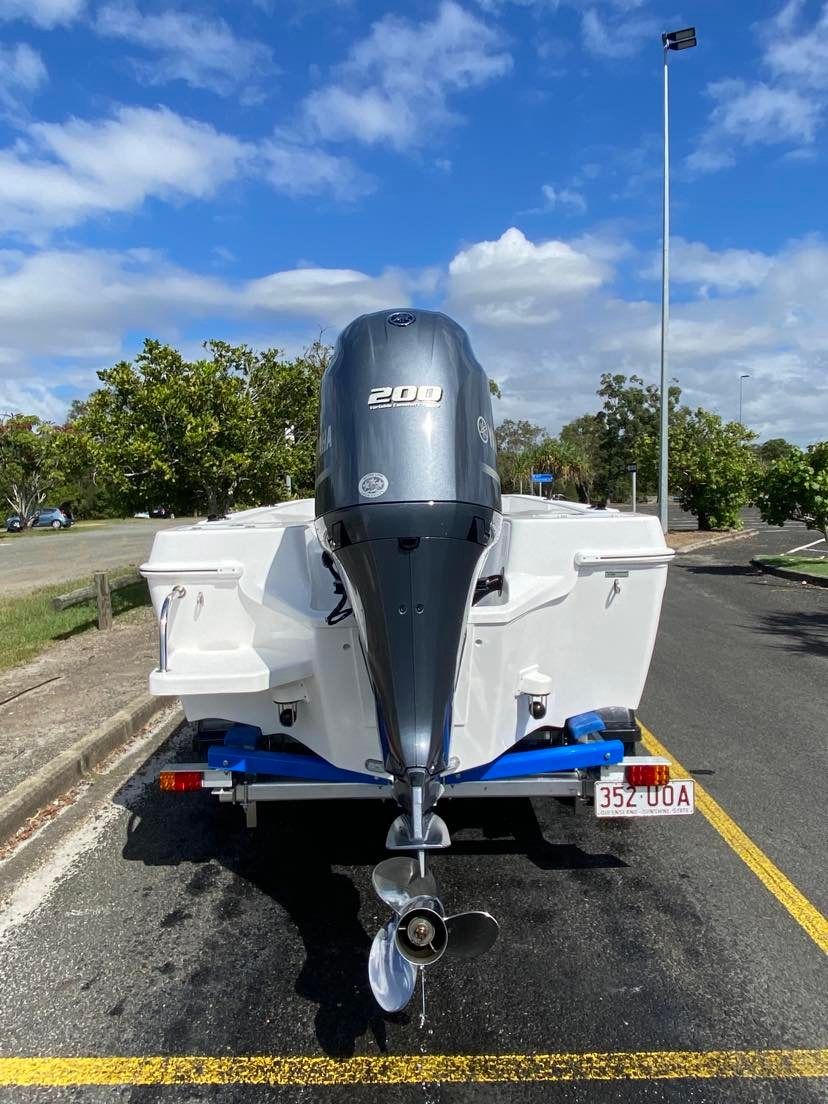

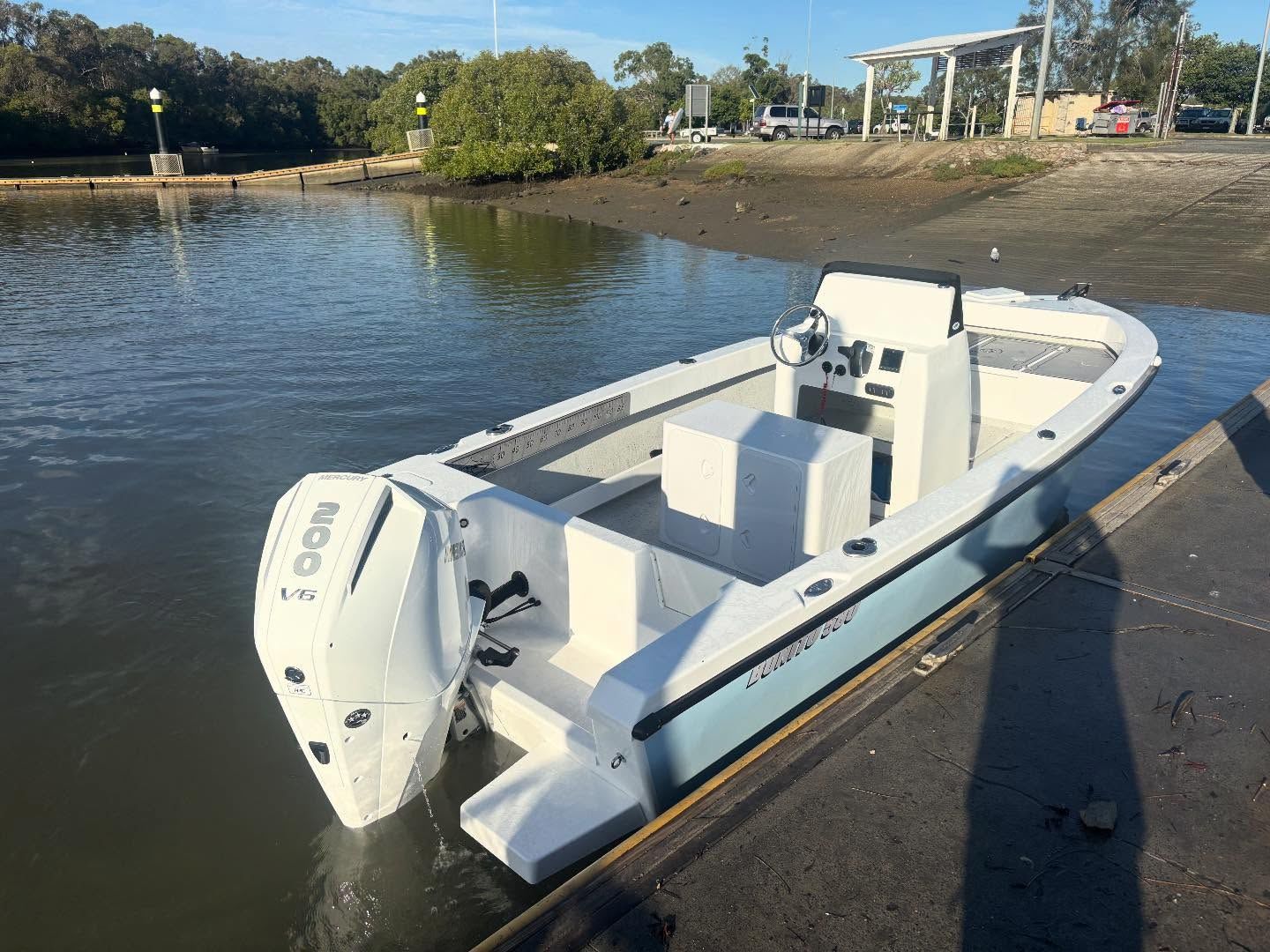

Make sure to check out the walkthrough video of the 560XT fitted with a 200HP Yamaha 4 cylinder
Bonito 560 Hull Specifications:
5.6m Hull Length
2.05 metres Beam
13 degree Deadrise
150Hp Rated
200Hp Rated XT Hulls
Draft 0.35m
150L,190L & 300L Fuel Tanks
Internal Free Board 610mm (minimum)
620kg Hull Weight + Options

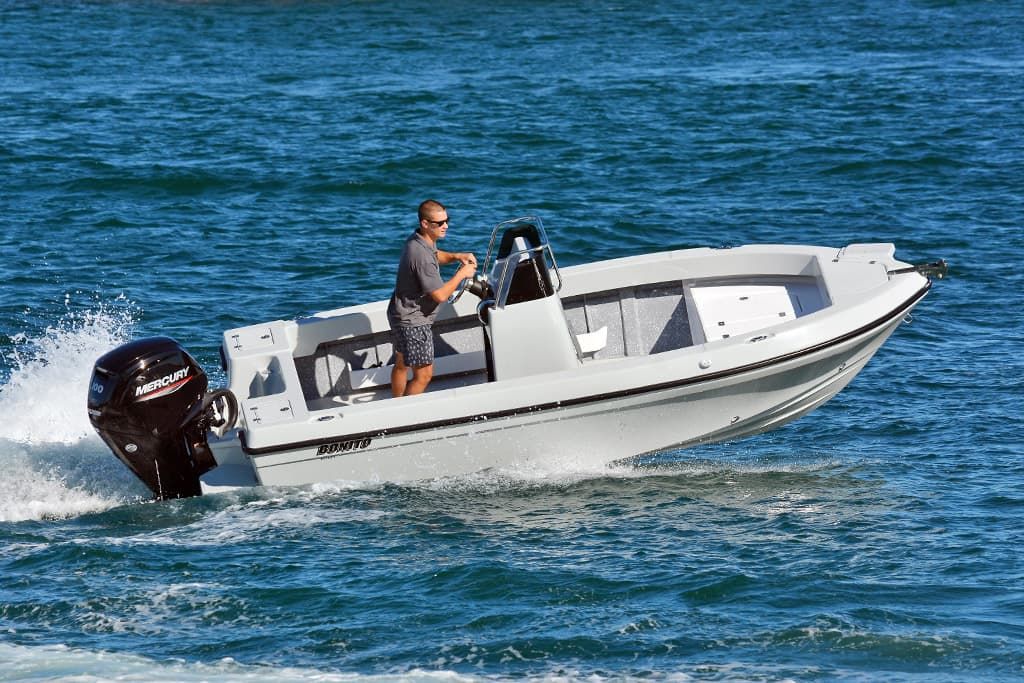

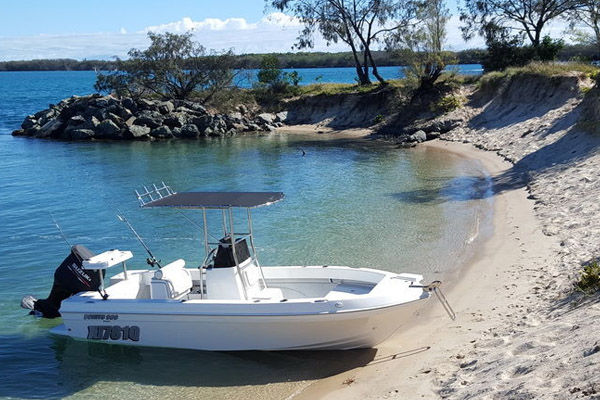

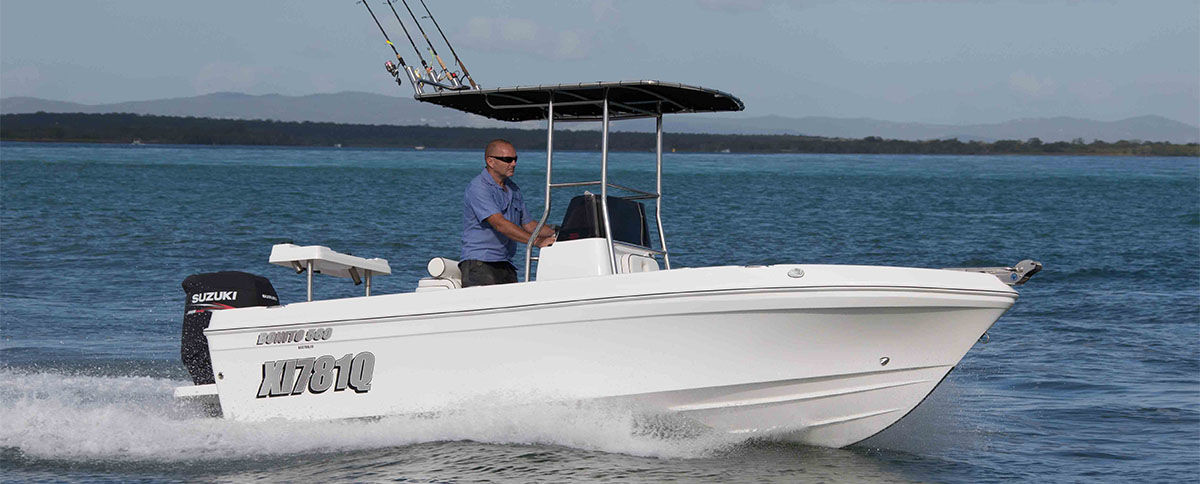

Bonito 500 Centre Console & Tiller
The Bonito 500 comes in three designated models; Centre Console, Tiller Steer and Side Console. The Bonito 500 is the perfect boat for trips up estuaries chasing crabs, prawning trips out in the bay and venturing offshore when the weather permits. The Bonito 500 is fully customisable to you and how you fish, with options such as; large and small cast platforms, through hull transducers, electric motor mounts, internal side pockets, under gunwale rod storage, leaning posts, live bait tanks, unfloor water fresh water tanks 125L to 150L underfloor fuel tanks etc. The Bonito 500 is also able to transform from a sports fishing boat into a family boat with the addition of a T - top, split and folding rear lounge and front console seat. The Bonito 500 is constructed the same as its larger brother the 560, this means same tough laminates consisting of woven rovings, double knitted double bias cloths, fibreglass stringer system, full composite construction and foam filled underfloor compartments, making it an extremely safe boating experience.
Bonito 500 Hull Specifications:
5m Hull Length
2.05 metres Beam
13 degree Deadrise
115Hp Rated
Draft 0.35m
120 & 150L Fuel Tanks
Internal Free Board 610mm (minimum)
550Kg Hull Weight + Options
